Max. height horizontal: 4,5 m. (with 1 m extension)
Extension: 1 m integrated (per 10 cm adjustable)
Weight: 52 kg.
Capacity: 75 kg (60 kg with extension).
Wheels (braked): 4 x Ø 125 mm
Plate rotatable: 2 fixed positions
Vertical: wall mounting till 90°
Maximum board dimensions: 1,22 x 2,44 m.
Minimum board dimensions: -
Foot- and tool platform: yes
Wheelbase: 0,95 x 0,95 m.

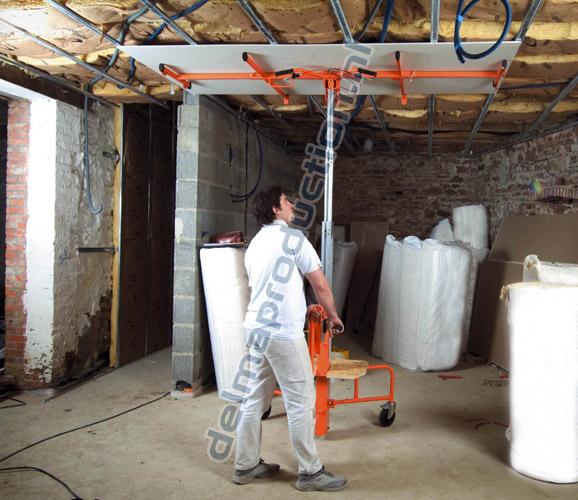

With the LEV-001, plates can be lifted both horizontally and vertically.

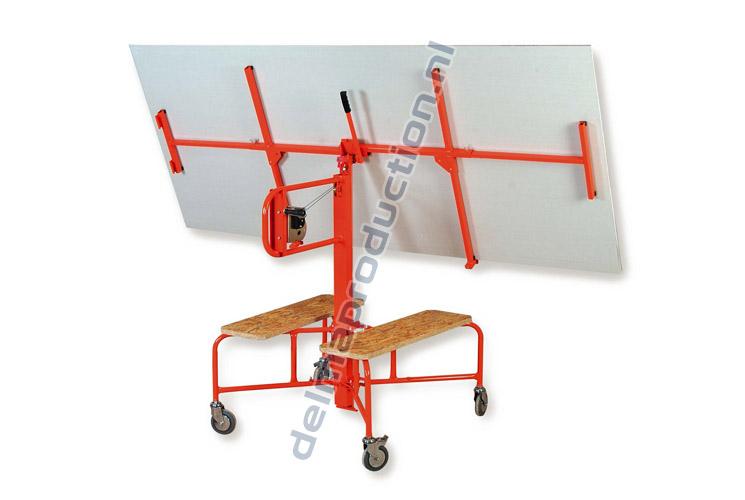

The plate can be tilted both in the width and in the longitudinal direction to an angle of 25 ° (relative to the mast). To do this, the removable upper frame must be adjusted prior to work.

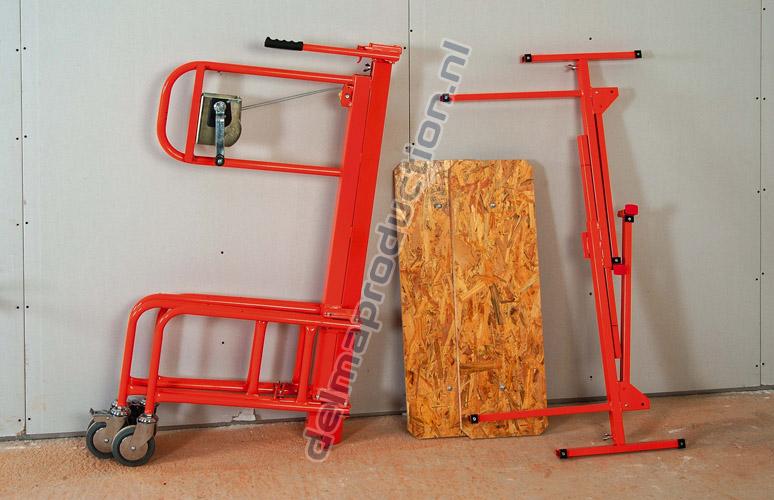

The whole is quickly deployable due to the simple folding construction. Two of the four wheels are equipped with a lock. In addition, the lift has two platforms with anti-slip material.
