Glass mounting lift pneumatic 3.8 m

PG 103800
product in stock
Hand grip set (optional) If desired you can choose a hand grip set for this product
Optional mounting adapter pneumatic glasslifters Required for attachment SEA-45010
Wheel set Wheelset_option_PM_desc
Mounting (optional) If desired you can choose a mounting adaptor for this product
Mounting_choiceRequired Mounting_choice_desc
2533,00 €
excl. VAT
Price per 1
Product details
  • Max. height: 3,8 m.
  • Min. height: 1,04 m.
  • Weight: 34 kg.
  • Dimensions folded lift: 0,36 x 0,36 x 1 m.
  • 4 swivel castors Ø125 with rubber surface and brake
  • Carrying platform: 0,61 x 0,48 m.
  • Wheelbase: 1,35 x 1,35 m.
  • Load capacity with centered load:
    • Material lift: 136 kg.
    • Glass mounting lift: 90 kg.
    • Drywall Panel Lift: 80 kg.
Product Description

Handy and compact pneumatically driven mounting lift for quickly raising air conditioning, heaters, awnings, air ducts, glass, ceiling- and gypsumplates. The lift can be used in a few seconds by means of a well thought-out folding system of the wheel arms. This means that the lift can also be stored compactly.

  • Powered: lift up and down by CO2- bottles or compressed air.
  • Minimum required air pressure 5,8 bar.
  • Supplied as standard with:

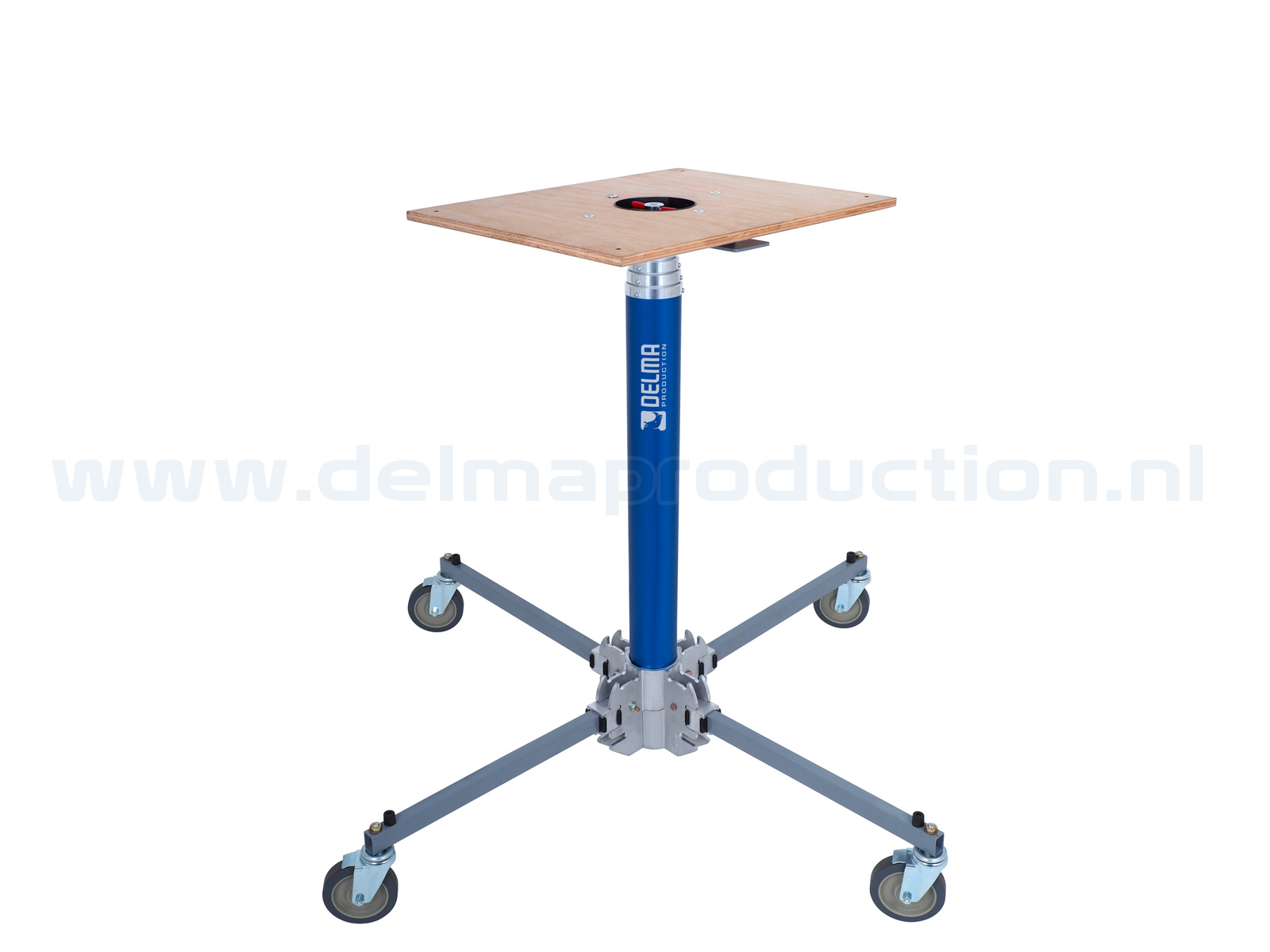

    • Wooden platform size (included in) 0. 61 x 0. 48 m.
    • Hose package and air pressure regulator.

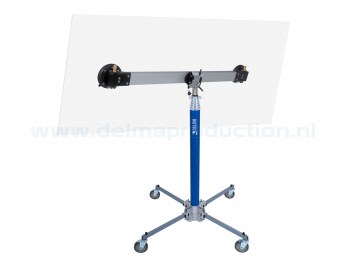

    • Glass top support arm with 2 suction cups, L 1700 mm (15285) or L 535 mm (15284) of your choice.
  • Optionally, many accessories are available (see order list above).
  • Complies with CE.
